Usability Testing

CMPT 363

“Use testing to guide design, not to grade designers.”
— Jeff Johnson

[.background-color: #618B25]

How to plan, conduct, and summarize usability tests?

[.background-color: #FFFFFF]

fit

[.background-color: #618B25]

Topics to Explore

Testing Methods
Conducting Tests
Analysis and Reporting

[.background-color: #611036] [.header: alignment(left),#FFFFFF]

How to plan, conduct, and summarize usability tests?

Testing Methods

What is Usability Testing?

Simply put, having other people try to complete specific tasks with your product or service

fit

Types of Usability Testing

Summative (verification)

Usability tests (often more formal) at the end of a development process or on a released product to assess if the interface meets pre-defined standards
Quantitative measurements (stats) are often the focus

Types of Usability Testing

Formative (diagnostic)

Usability tests (often less formal) during the design process to help identify usability issues before development is finalized or a product is released
Qualitative insights (details) are often the focus

Why Conduct Usability Tests?

Learning opportunity for even the most experienced designers

Why Conduct Usability Tests?

A very effective form of risk mitigation

Why Conduct Usability Tests?

Insight into the critical “first-use” user experience

Why Conduct Usability Tests?

Often the process of preparing for the test will result in discovering areas which can be improved

Why Conduct Usability Tests?

All products and services will be usability tested once released!

What are the Limitations of Usability Testing?

Often done in artificial test environments (unless conducted remotely or on-location)
Not really proof that the product works
Participants are often not actual users
Time-consuming and difficult to properly conduct extensive comparative tests
Measures learnability rather than overall usability
Not a replacement for interface design skills

Usability Test Formats

5 second test
Paper and pencil
Observational

5 Second Test

Show an image of a design to users for only 5 (five) seconds, and ask for their initial impressions

Example 5 Second Test Questions

What do you think is the primary purpose of this screen?
What elements of the screen do you recall?
Who do you think is the intended audience?
What was your impression of overall design?

fit

Paper and Pencil (aka Sketches)

Representative users are shown very early versions of interface design elements
Users are then asked a series of task-oriented questions

Example Task-oriented Questions

What do you think is the primary purpose of this screen?
What do you think about the overall organization of this screen?
What might you do to start the task of …?

[.background-color: #2d6e92] [class=activity-link-color] [.header: alignment(left),#FFFFFF] [.text: #FFFFFF]

Activity: Task-oriented Questions

Primary purpose of this screen?
Overall organization of this screen?
Start the task of …?

fit

Observational Test

A representative user is given one or more tasks to perform with the interface, and the evaluator passively observes

Observational Test

If other colleagues are to be present, be sure to outline procedural expectations for the test

Hawthorne Effect

A famous series of experiments were conducted in 1920’s and are often cited as proof that people being observed may try harder than usual to achieve their tasks

Hawthorne Effect

This interpretation as applied to usability studies remains controversial, as the original study was longitudinal (same task over time) and participants were also task experts

Time for Questions & Discussion

What we’ve covered so far
- What is usability testing?
- 5-second test
- Paper and pencil
- Observational test
Coming up
- Conducting tests

[.background-color: #611036] [.header: alignment(left),#FFFFFF]

How to plan, conduct, and summarize usability tests?

Conducting Tests

Pre-test activities
Observational test activities
Post-test activities

Pre-Test Activities

Define test purpose and concerns
Identify test participants
Create demographics (user profile) questionnaire
Decide on test method
Select tasks to be performed
Create usability test tasks
Conduct pilot test

Define Test Purpose

When defining the purpose for a usability test, you are identifying the overall goal for the test

Define Test Purpose

For example, “The purpose of this usability test is to get an early assessment of the overall usability of the software product XYZ”

Define Test Concerns

When defining concerns for a usability test, you are identifying the specific aspects of the interface you want to learn more about

Define Test Concerns

For example, “Can participants successfully submit an order form?” or “Do participants have any difficulty with terms and phrases?”

Define Usability Targets (Summative Tests)

Elements of a Usability Target:

Condition {a}
Criteria {b}
Performance {c}

Example Usability Target (e.g. effectiveness): With at least 3 months of Windows experience {a}, at least 80% of participants {b} should be able to complete the task of adding a new contact name {c}

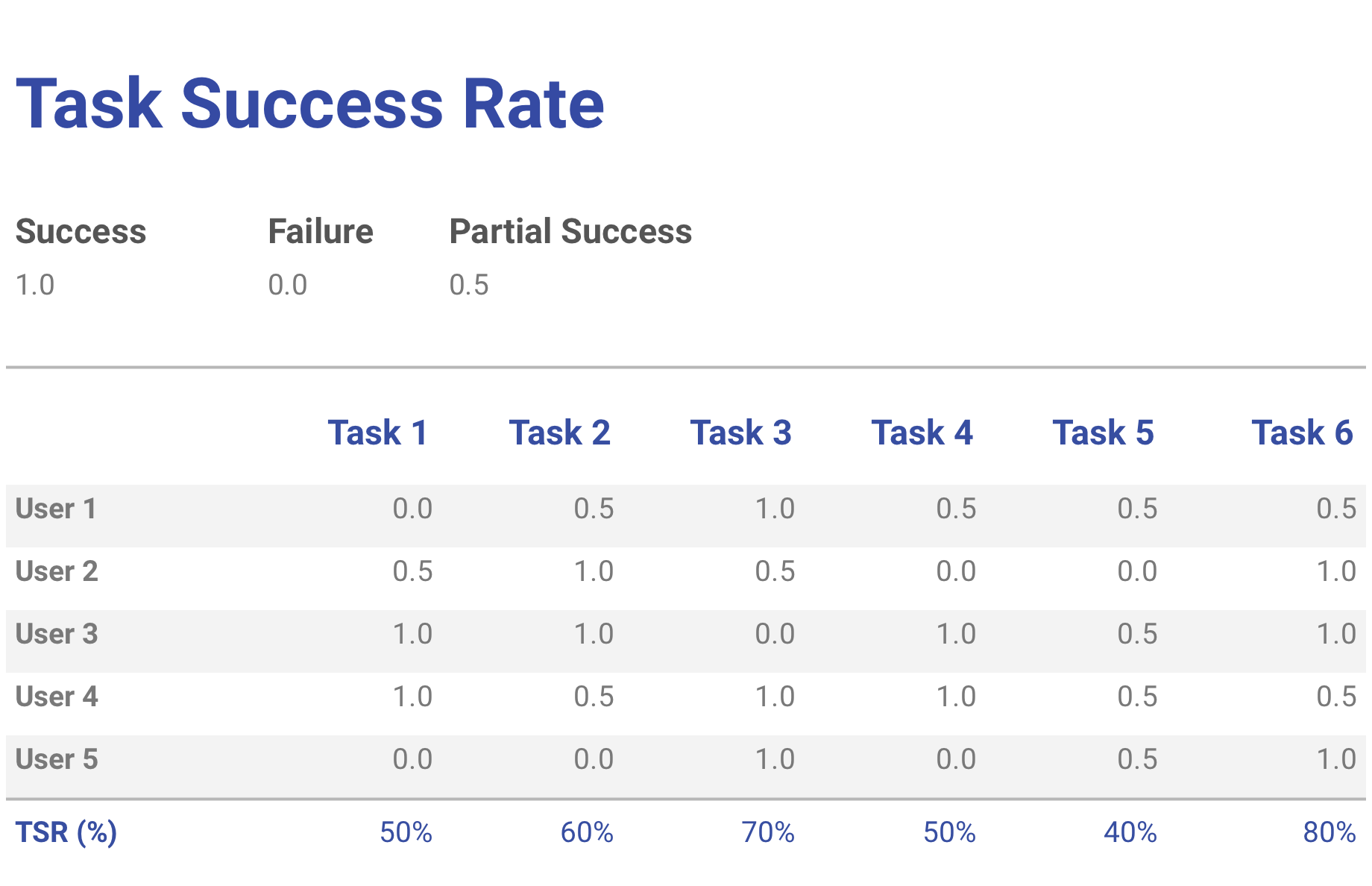

Key Usability Target Metrics

Effectiveness (e.g. 80% of participants can complete the task without assistance)
Efficiency (e.g. 70% of participants can complete the task in under 10 minutes)
Attitude (e.g. after performing three tasks, 85% of participants rated their overall satisfaction with the software at least 5.5 out of 7)

fit

Identify Test Participants

If actual users are not available, the test participants chosen should be as representative of actual users as possible

Sources for Test Participants

Contacts via marketing or customer support
Colleagues who are representative users
Recent employees of your company
“Dash and grab” company hallway method
Anywhere you can find them (i.e. “Guerilla” usability testing)

[.background-color: #FFFFFF]

fit

An Important Caveat

With 5 users you have an 85% chance of seeing the problem in an interface, but the probability is that it only affects 31% of users at least once.

Research has indicated that to be 85% sure you’ll see the problem that affects 10% of users at least once 18 users are required.

[.background-color: #FFFFFF]

fit

How Many Users, Really?

“Five users revealed most of the most common issues.”
“Five users didn’t uncover most problems.”

– Jeff Sauro, PhD, Sample Size in Usability Studies: How Well doe the Math match Reality?

User Demographics (User Profile) Questionnaire

A questionnaire should be used to collect and summarize demographic information about all the participants involved in the test

Decide on Test Method

Simple observation
Think-aloud method

Simple Observation Method

Most basic type of observational usability test
Test participant is observed with as little interaction as possible

Think-aloud Method

A variation of the simple observational test, where participants are asked to think out loud (describe what they are thinking) while performing tasks
Most widely used method in the software industry

Think-aloud Method

Method is not appropriate if the efficiency (i.e. time on task) is being measured, unless done in a retrospective manner

Prompting Test Participants to Think-aloud

What they believe is happening
What they are trying to do
Questions that arise in their mind
Things that they find confusing
Why they decided to try a specific action

[.text: #FFFFFF]

Think-aloud Method

(+) Can reveal user’s mental model
(+) Can be used early in design process
(+) Precise pointers to problems
(–) Unnatural situation
(–) Measurement of time on task not reliable
(–) Requires more participant effort

Co-discovery Method (Formative Tests)

Normal conversation between the two participants provides a more natural way of revealing internal thought processes

Decide on Test Environment/Equipment

In-person vs. remote (via screen sharing software)
Paper-based mockups vs. prototype vs. actual system

Select Tasks to Perform

In general, either frequent tasks and/or important tasks should be selected for inclusion into usability tests

Select Tasks to Perform

Ensure that a very simple task is at the beginning of the usability test

Create Usability Test Tasks

Tasks should start with a written scenario, describing one or more specific goals
Communicate intent, but not the operations of what is required to be done
Avoid using words contained in any user interface elements

Example Usability Test Task

“You are planning to visit family on the east coast, but before you do so you need to temporarily stop your newspaper delivery”

“Cancel your Vancouver Sun newspaper delivery between Oct 10th to 29th.”

[.background-color: #2d6e92] [class=activity-link-color] [.header: alignment(left),#FFFFFF] [.text: #FFFFFF]

Activity: Usability Test Tasks

PROJECT GROUPS
Create a possible usability test task (starting with a scenario) for users of your chosen open source/SFU community project

Conduct Pilot Test

Identifies issues with test materials (e.g. sequence, wording, etc.)
Validates time estimates for tasks/session
Ensures that the mock-up/software is capable of completing specified tasks

Create a Usability Test Plan

Test purpose
Test concerns
Usability targets (summative tests)
Participant user profile
Test method
Test environment and equipment
Test tasks
Evaluation measurements

fit

Time for More Questions & Discussion

What we’ve covered in this section
- Defining test purpose and concerns
- Identifying test participants
- Creating user profile questionnaire
- Deciding on test method
- Selecting tasks to be performed
- Creating usability test tasks
- Conducting a pilot test
- Usability test plan
Coming up
- Observational test activities

Observational Test Activities

Welcome participant
Introduce the software
Provide written tasks
Observe participant
Participant suggestions
Test completion

Welcome the Participant

Greet the participant, and provide a high-level overview of the software product being tested

Welcome the Participant

Inform participants that the product’s user interface is being tested, and not them

Welcome the Participant

Explain that you cannot provide help to the participant during the test, as this would bias the test results

Welcome the Participant

Provide a signed consent form, if appropriate

Welcome the Participant

Other ethical considerations
- Don’t use the term “test subject”
- Test participants can end the test at any time
- Results will remain anonymous (use a participant coding scheme)

Introduce the Product

A brief preview or demonstration of the software product might be appropriate

Introduce the Product

Be sure that none of the elements included in the usability test are demonstrated or discussed

[.background-color: #2d6e92] [class=activity-link-color] [.header: alignment(left),#FFFFFF] [.text: #FFFFFF]

Activity: Compare Two Usability Test Introductions

Moderating Usability Tests: Principles and Practices for Interacting - Videos (Adobe Flash Required)

Introductions
Pre-Test Script
Pre-Test No Script
Reactions Pretests

Provide Written Tasks

Provide participants with a written copy of each task (one at a time) that you want them to try to perform

Provide Written Tasks

Remember, these tasks should be written more as scenarios describing specific goals, and not operational instructions

Observe the Participant

Carefully observe the participants as they try out your software, and have them indicate when they have completed each task

Observe the Participant

Consider having another person on your team take notes of actions each participant tries to perform with the software

Things to Watch Out For

Inconsistencies between software and participants vocabulary
Screens that participants visibly paused on
The type and number of mistakes each participant makes

How to Make Your Observations Effective?

Let participants make mistakes

How to Make Your Observations Effective?

Record, but do not answer, questions (alternative is to answer them with questions)

How to Make Your Observations Effective?

Do not tell participants what to do!

How to Make Your Observations Effective?

Be careful not to give subtle cues, for example raising your voice often signals agreement

How to Make Your Observations Effective?

Try not to be defensive, remember you are trying to create a better user experience!

Handling Requests for Help

Reiterate in a very friendly manner that you cannot provide assistance, as doing so would bias the test results (note help requests)

Handling Requests for Help

If your initial response is not sufficient, state “Please remember, there’s no rush– take your time...”

Handling Requests for Help

If assistance is provided, clearly indicate in your notes when and where participant received help

[.background-color: #2d6e92] [class=activity-link-color] [.header: alignment(left),#FFFFFF] [.text: #FFFFFF]

Activity: Moderating a Usability Test — Asking for Assistance

Moderating Usability Tests: Principles and Practices for Interacting - Videos (Adobe Flash Required)

Introductions
Usability test interactions sample
Usability test interactions reactions

Participant Suggestions

Participants will often make specific suggestions regarding the usability issues that they encounter

Participant Suggestions

These suggestions should be reviewed, but not blindly followed as solutions to problems

Task Completion

Once the test is complete, thank participants for their time and have them immediately fill out a post-test questionnaire before engaging in any follow-up discussions
Provide participants with at least a token gift for their assistance

Post-Test Questionnaire

A small number of rating scales
Features to add/remove or best/worst features of interface (open ended)
Blank “other” or “comments” field
Consider including questions on each task sheet/card
Use existing questionnaire when possible (e.g. Single Ease Question after each task, System Usability Scale after all tasks)
Single Ease of Use Question

Single Ease of Use Question

Overall, this task was?
- Very difficult
- Somewhat difficult
- Neither difficult nor easy
- Somewhat easy
- Very easy

Create a Usability Test Script For More Consistent Test Activities

Introduction
Session details, including participant rights
Check if participant has any questions
Pre-test survey/questions (if applicable)
Usability test tasks
Post-test survey/questions (if applicable)
Session wrap-up, including thanking participant

Time for More Questions & Discussion

What we’ve covered in this section
- Welcoming participant
- Introducing the software
- Providing written tasks
- Observing participant
- Participant suggestions
- Test completion
Coming up
- Post-test activities

Post-test Activities

Summarize and present the results to your team, and consider sharing them with all project stakeholders

Post-test Activities

Ensure that there is time to use the results when conducting formative tests!

[.background-color: #611036] [.header: alignment(left),#FFFFFF] [.text: #FFFFFF]

How to plan, conduct, and summarize usability tests?

Analysis and Reportings

Sharing Results - Brief Report

Executive summary, including highlighting of positive attributes
Methodology (participant profiles, test activities, and data collected)
Key findings and recommendations

Key Findings and Recommendations

List of major issues
Prioritized recommendations (if appropriate)
Task success rate matrix
User quotes
Post-test questionnaire results

[.background-color: #FFFFFF]

inline

Task Success vs. Failure

Success
- Participant was able to complete task without using on-line help or requesting assistance
Partial
- Participant had to use on-line help, or had to try one or more actions before succeeding
Failure
- Participant required help from facilitator, or was unable to complete requested task

Usability Test Report for a Summative Test

Common Industry Format (ISO/IEC 25062:2006)

Title page
Executive summary
Introduction (full product description and objectives)
Context of test (participants, tasks, environment, etc.)
Experimental design (independent/dependent variables, measurements, procedure, general instructions, etc.)
Results (data analysis, presentation of results , etc.)
Appendices (detailed instructions, surveys, etc.)

[.background-color: #618B25]

Summary

Testing Methods
- Usability Testing Overview
- Usability Test Formats
Conducting Tests
- Pre-test Activities
- Test Activities
- Post-test Activities
Analysis and Reporting
- Sharing Test Results

[.background-color: #888888] [.header: #FFFFFF, alignment(left)]

References and Suggested Books

Elements of User Interface Design, by Theo Mandel
The Usability Kit, by Gerry Gaffney and Daniel Szuc
Usability Engineering, by Jacob Nielsen
How To Specify the Participant Group Size for Usability Studies: A Practitioner’s Guide, by Ritch Macefield (uxpa.org/jus/article/how-specify-participant-group-size-usability-studies-practitioner’s-guide)

[.background-color: #888888] [.header: #FFFFFF, alignment(left)]

Image Credits (for images without source URL or note)

https://psmag.com/news/why-bad-ballot-design-is-a-really-significant-problem
https://www.nngroup.com/articles/error-prevention/
https://lib.calpoly.edu/news/2013/04/reinventing-the-library-website-student-sketches/
https://measuringu.com/five-users/
https://www.userfocus.co.uk/articles/usability_test_plan_dashboard.html
https://uxdesign.cc/how-to-run-a-remote-usability-testing-4350c7786f20
